FRANCISCO JEEPNEY™️ (Exclusive for TsuperHero® Program!)

Exclusive for TsuperHero® Program!

SPECIFICATIONS:

CHASSIS AND BODY:
Francisco Jeepney™️ Chassis

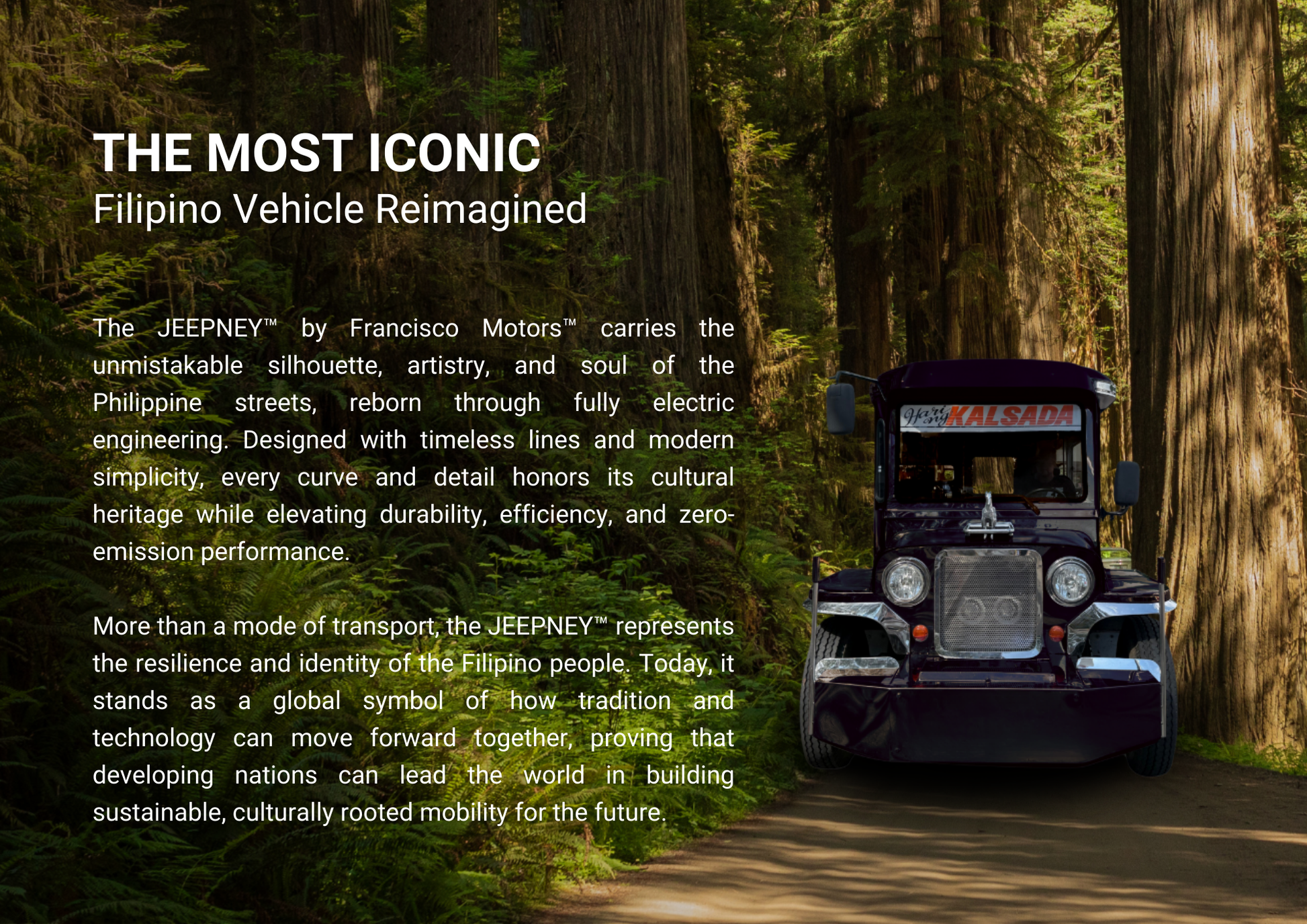

Classic Iconic Francisco Jeepney™️ Body Design
PNS Compliant Measurements

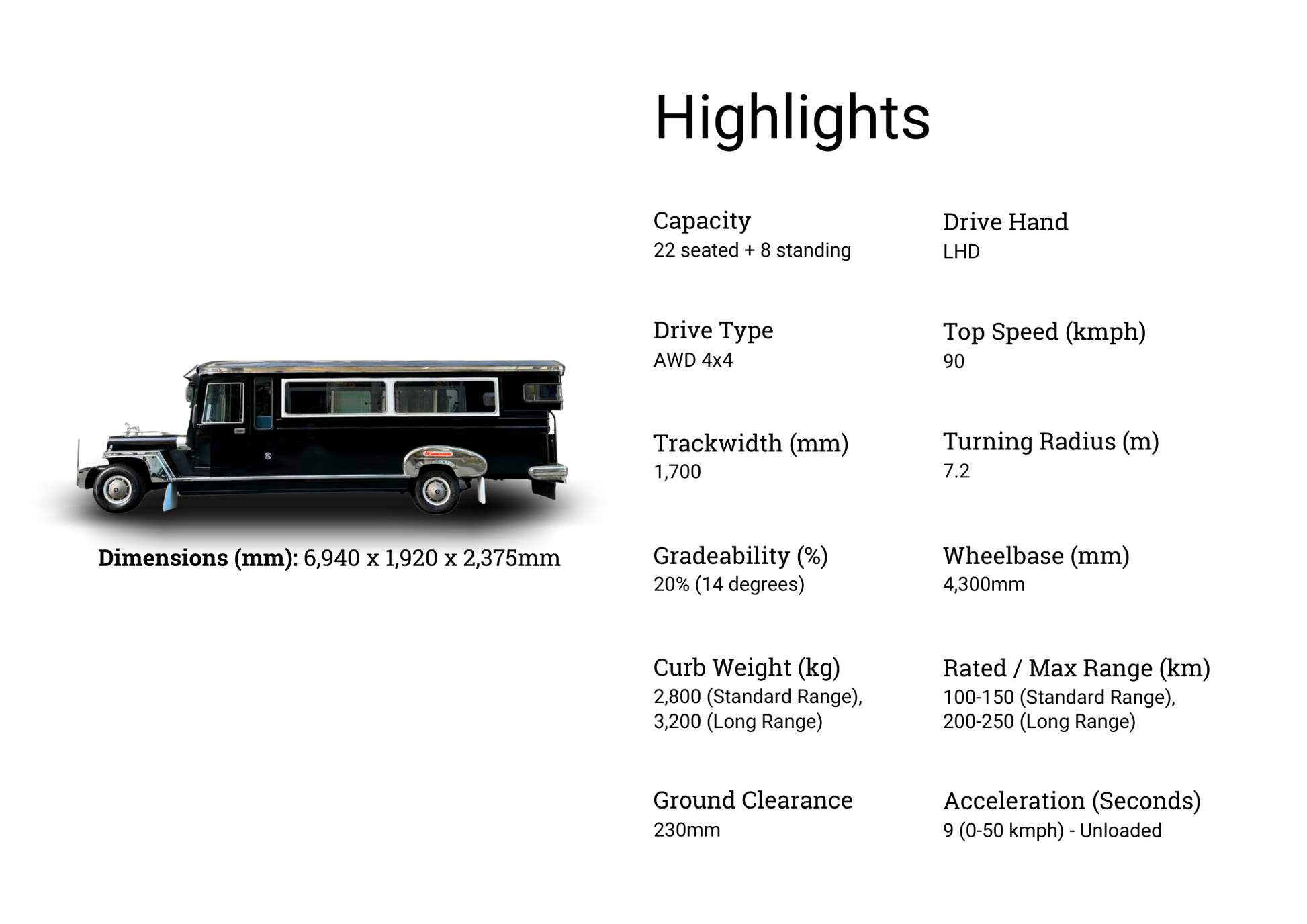

Dimensions LxWxH (mm): 6,940 x 1,920 x 2,375
Wheelbase: 4,300mm
Interior Height (mm): 1,750
Ground Clearance: 230mm
Trackwidth (mm): 1,700
Capacity: 30 (11 + 11 seated plus 8 standing)
Drive Type: AWD 4x4
Drive Hand: LHD
Top Speed (km/h): 90
Acceleration (s): 0 (0-50 km/h) - Unloaded
Gradability (%): 20% (14 degrees)
Curb Weight (kg): 2,800 (standard Range), 3,200 (Long Range)
Rated/Max Range (km): 100-150 (Standard Range), 200-250 (Long Range)

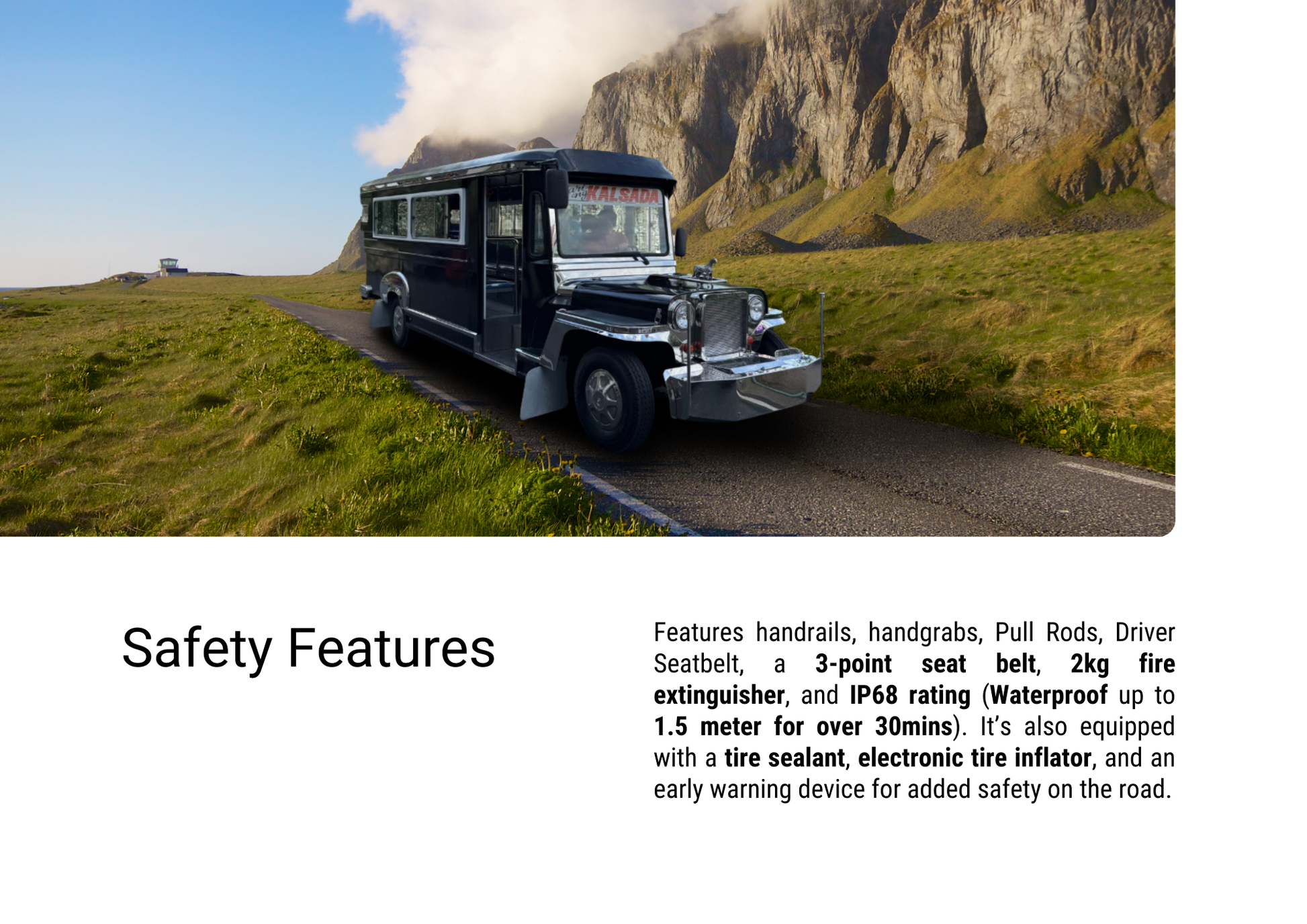

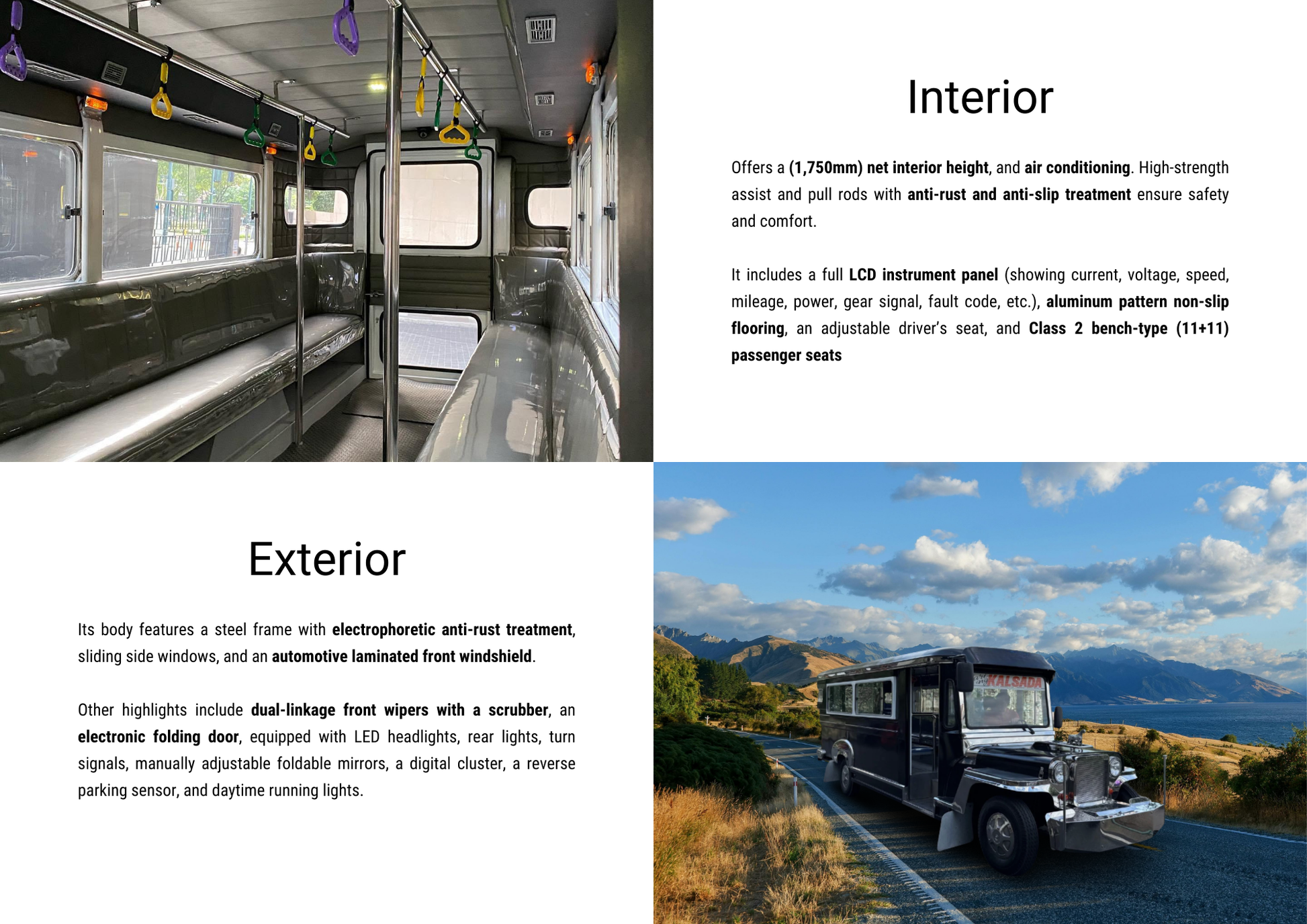

Safety: Handrails + Handgrabs + Pull Rods + Driver Seatbelt
Electronic Front/Right Door

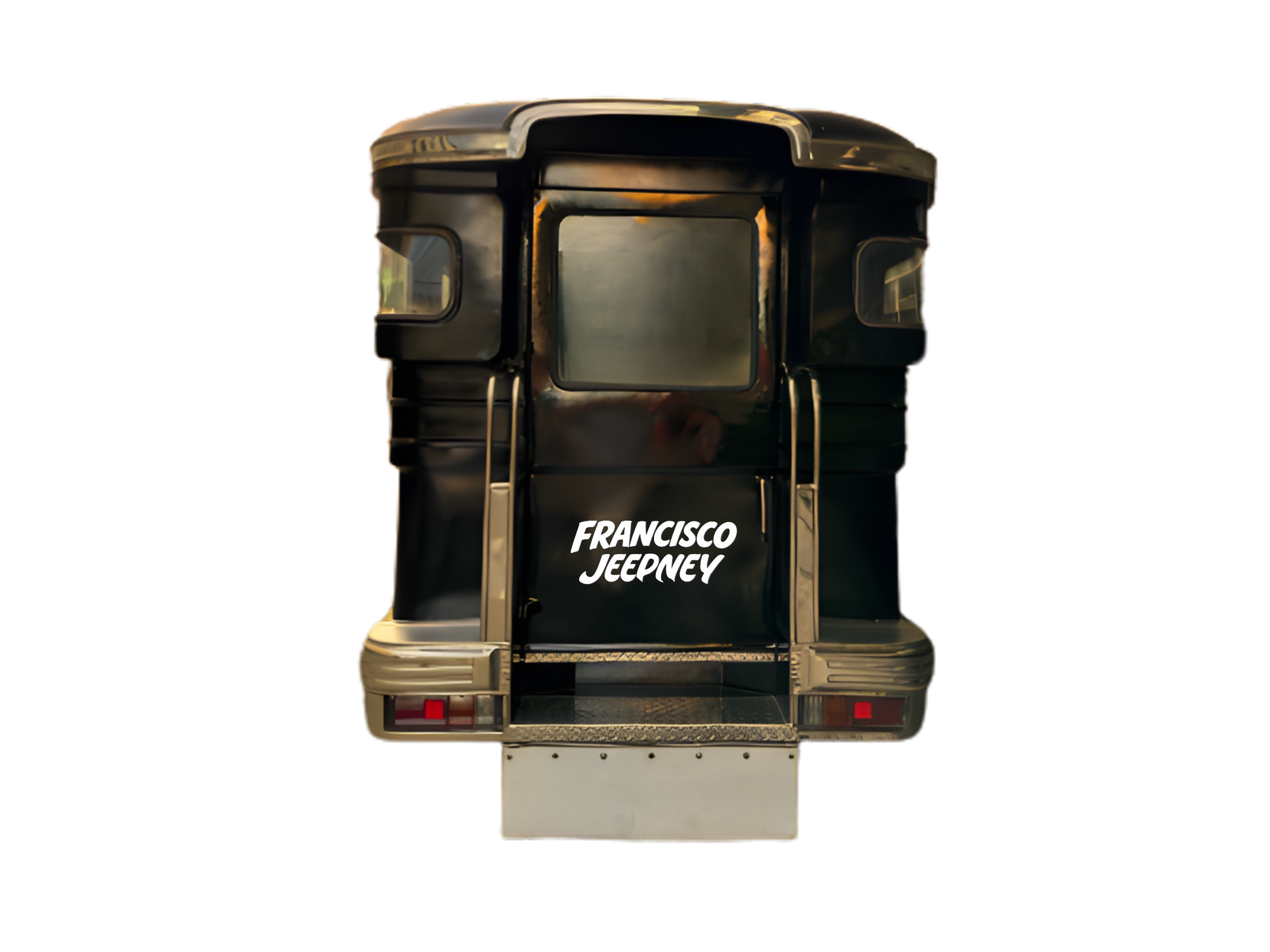

PWD Access: Ramp at the rear emergency exit
Sliding Windows
Fully Airconditioned

Add-on options with additional cost:
Automated Fare Collection System, WiFi, GPS, CCTV, Dashcam, Audio and Video

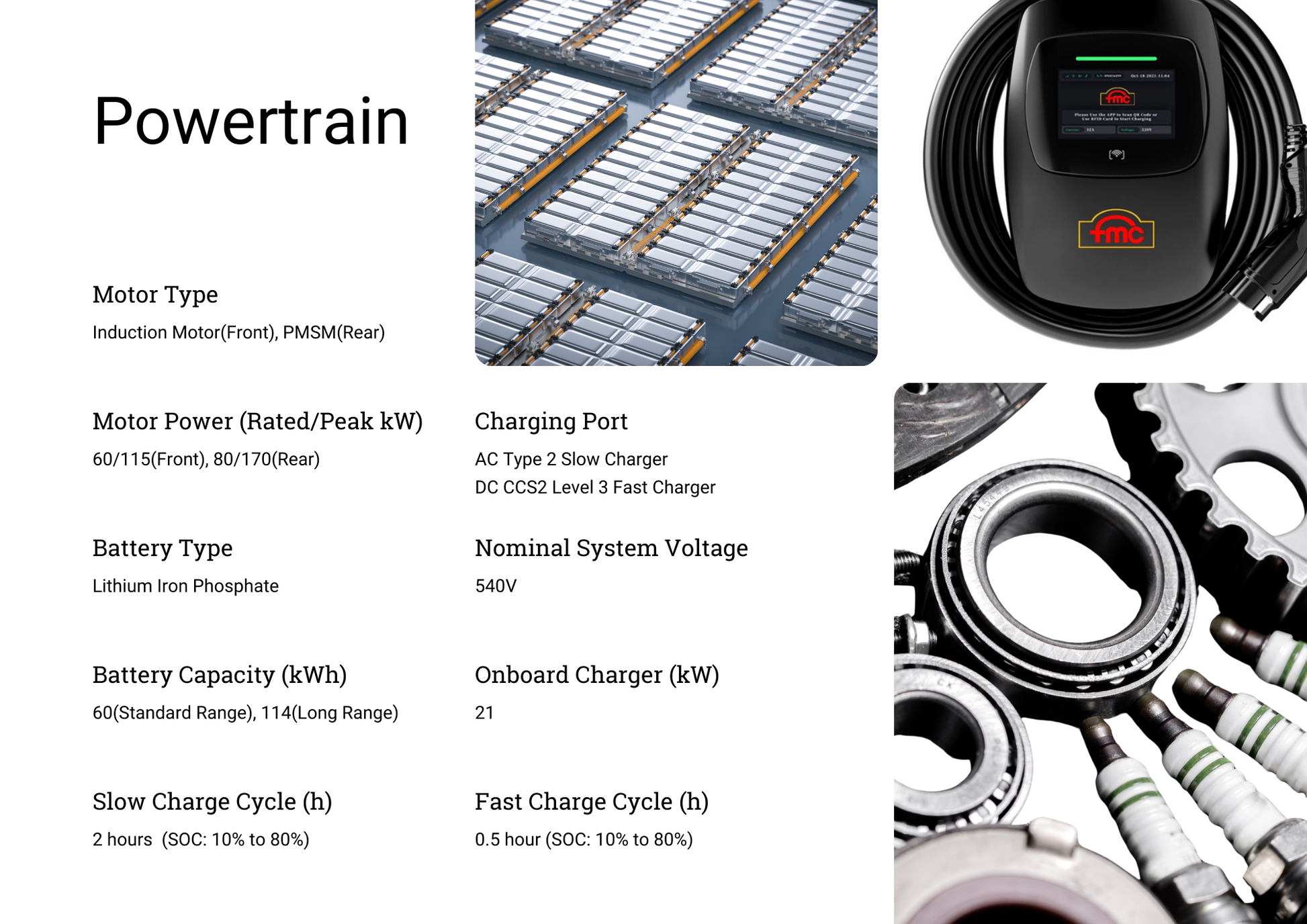

POWERTRAIN:
Motor Type: Induction Motor (Front), PMSM (Rear)
Motor Power (Rated/Peak kW): 60/115 (Front), 80/170 (Rear)
Battery Type: Lithium Iron Phosphate
Battery Capacity (kWh): 60 (Standard Range), 114 (Long Range)
Slow Charge Cycle (h): 2 hours (SOC: 10% to 80%)
Charging Port: AC Type 2 Slow Charge, DC CCS2 Level 3 Fast Charger
Nominal System Voltage: 540V
Onboard Charger (kW): 21
Fast Charge Cycle (h): 0.5 hour (SOC: 10% to 80%)

NOTE: Specifications and details are subject to change without prior notice.
